Bevel Scale

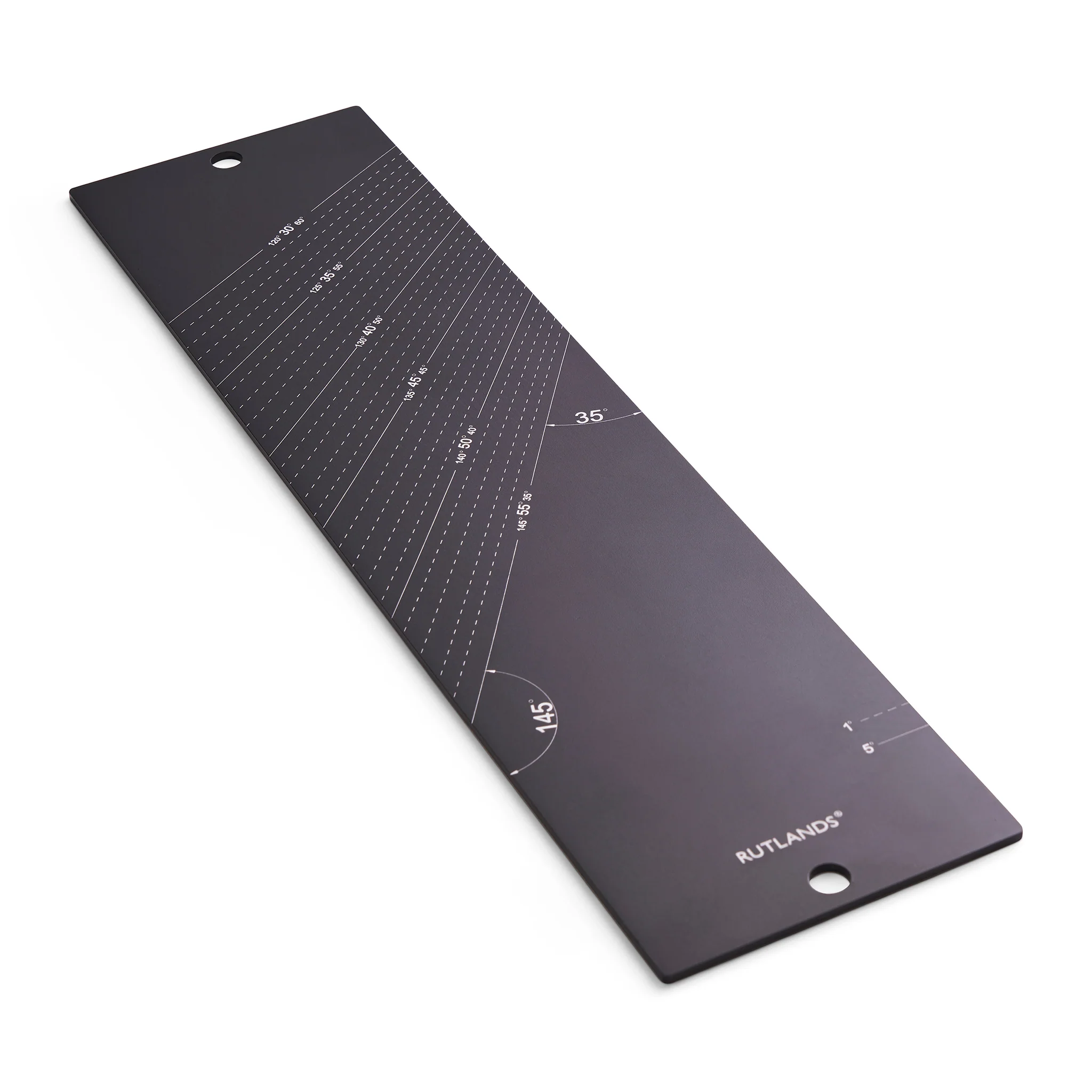

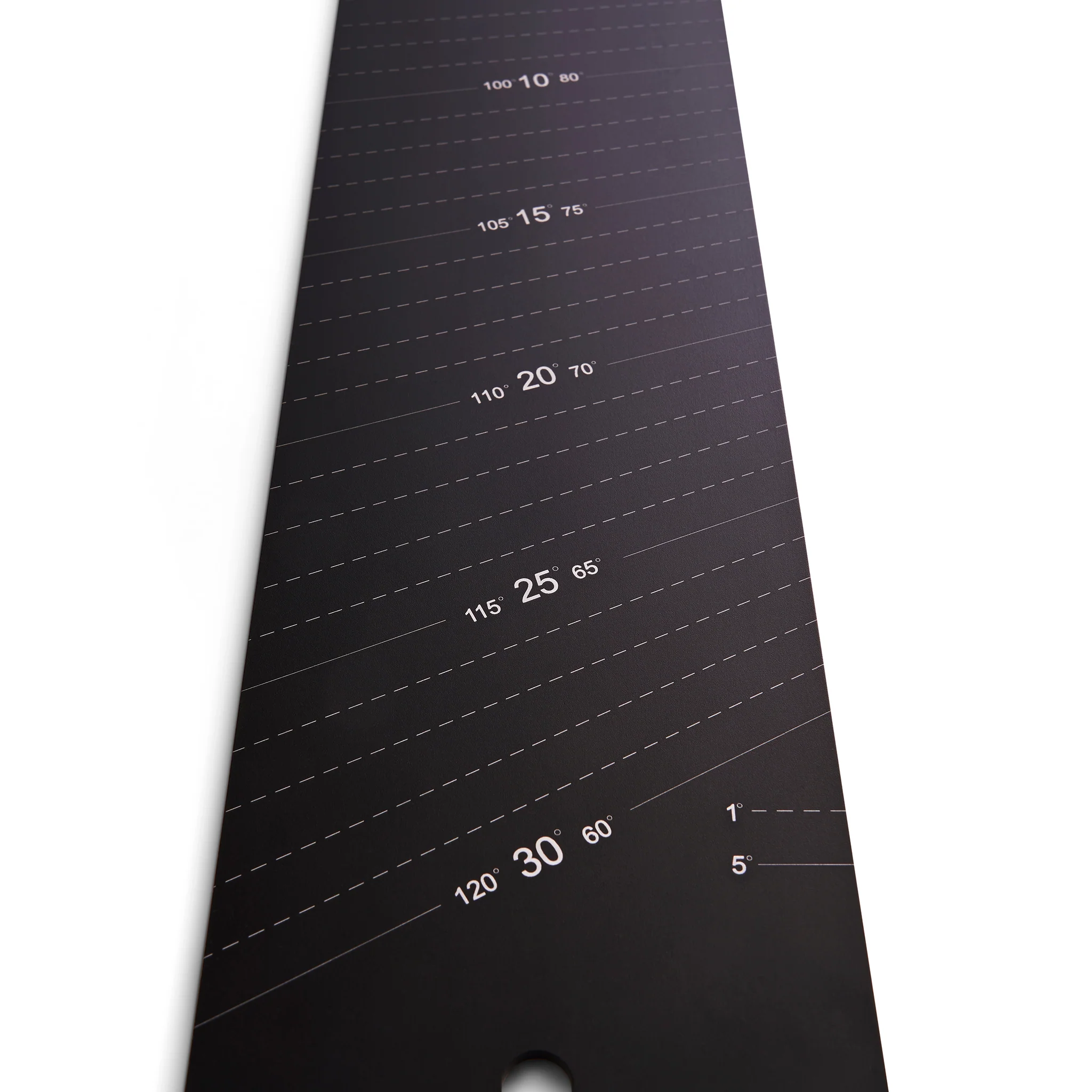

The Rutlands® bevel scale makes angle identification and replication for sliding bevels quick and accurate, laser etched from 0 to 55° in 1° increments. With a dual-sided design, one side reads from 0 to 30°, with the other reading from 30 to 55°. Each 1° increment is shown as a dashed line, with each 5° increment a solid line. The reference lines extend across the full width of the scale, allowing bevel gauges to be placed against the opposing edge to find complimentary and supplementary angles, each denoted on the scale for reference.

Measuring 405mm x 100mm, its sizeable construction allows the reference lines to spaced comfortably apart, making them easy to read and reducing eye strain. The CNC machined aluminium alloy plate features a hard-wearing, corrosion-resistant anodised finish. ©
