-65%Dovetail Jaws 50mm - Precision 75 Chuck—
$57.71
$20.20The Story
These popular and extremely versatile jaws have two core work-holding modes. In compression mode the tapered internal edge of the jaws close around and grip a spigot that has been turned on the base of a bowl or vase. In expansion mode, the tapered external edge of the jaws expands into a recess cut in the base of a workpiece. The grip is most powerful when the jaws form a true circle, ensuring maximum jaw edge contact with the workpiece. In compression mode the range is 40mm to 24mm with 28mm being a true circle and in expansion mode the range is 38 - 50mm with 50mm being a true circle. These dovetail jaws also accept the faceplate ring for attaching bowl blanks and the screw chuck which is commonly used when turning goblets and candlesticks.
These jaws are machined from a special grade of medium-tensile steel, which is normally used for the manufacture of high performance turbo impellors, pistons and gears. Using this steel allows for closer tolerances during the manufacturing process which results in excellent concentricity to minimize vibration and to ensure that a chatter-free, super fine finish can be achieved by the woodturner. ©
These jaws are machined from a special grade of medium-tensile steel, which is normally used for the manufacture of high performance turbo impellors, pistons and gears. Using this steel allows for closer tolerances during the manufacturing process which results in excellent concentricity to minimize vibration and to ensure that a chatter-free, super fine finish can be achieved by the woodturner. ©
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description

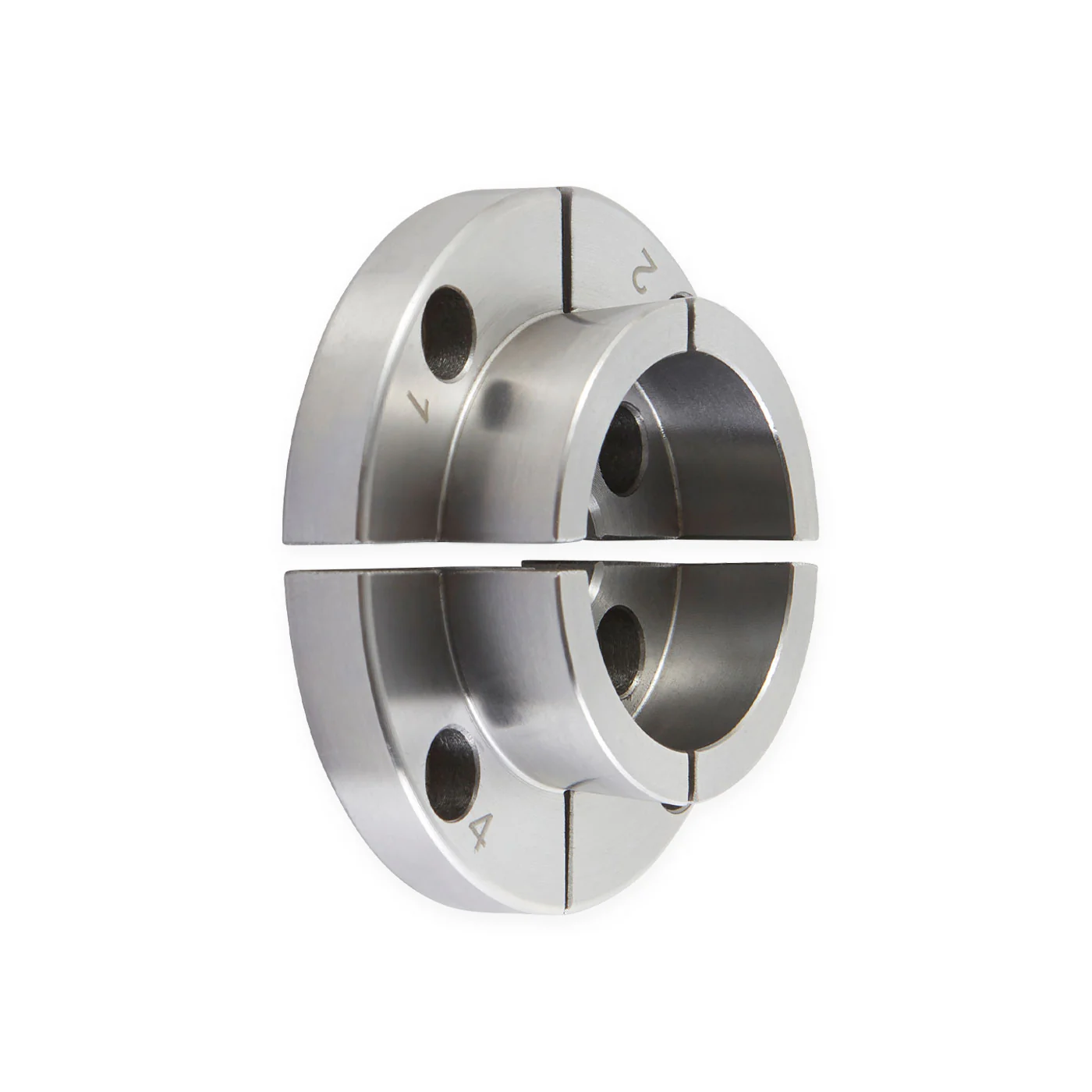

These popular and extremely versatile jaws have two core work-holding modes. In compression mode the tapered internal edge of the jaws close around and grip a spigot that has been turned on the base of a bowl or vase. In expansion mode, the tapered external edge of the jaws expands into a recess cut in the base of a workpiece. The grip is most powerful when the jaws form a true circle, ensuring maximum jaw edge contact with the workpiece. In compression mode the range is 40mm to 24mm with 28mm being a true circle and in expansion mode the range is 38 - 50mm with 50mm being a true circle. These dovetail jaws also accept the faceplate ring for attaching bowl blanks and the screw chuck which is commonly used when turning goblets and candlesticks.
These jaws are machined from a special grade of medium-tensile steel, which is normally used for the manufacture of high performance turbo impellors, pistons and gears. Using this steel allows for closer tolerances during the manufacturing process which results in excellent concentricity to minimize vibration and to ensure that a chatter-free, super fine finish can be achieved by the woodturner. ©
These jaws are machined from a special grade of medium-tensile steel, which is normally used for the manufacture of high performance turbo impellors, pistons and gears. Using this steel allows for closer tolerances during the manufacturing process which results in excellent concentricity to minimize vibration and to ensure that a chatter-free, super fine finish can be achieved by the woodturner. ©
