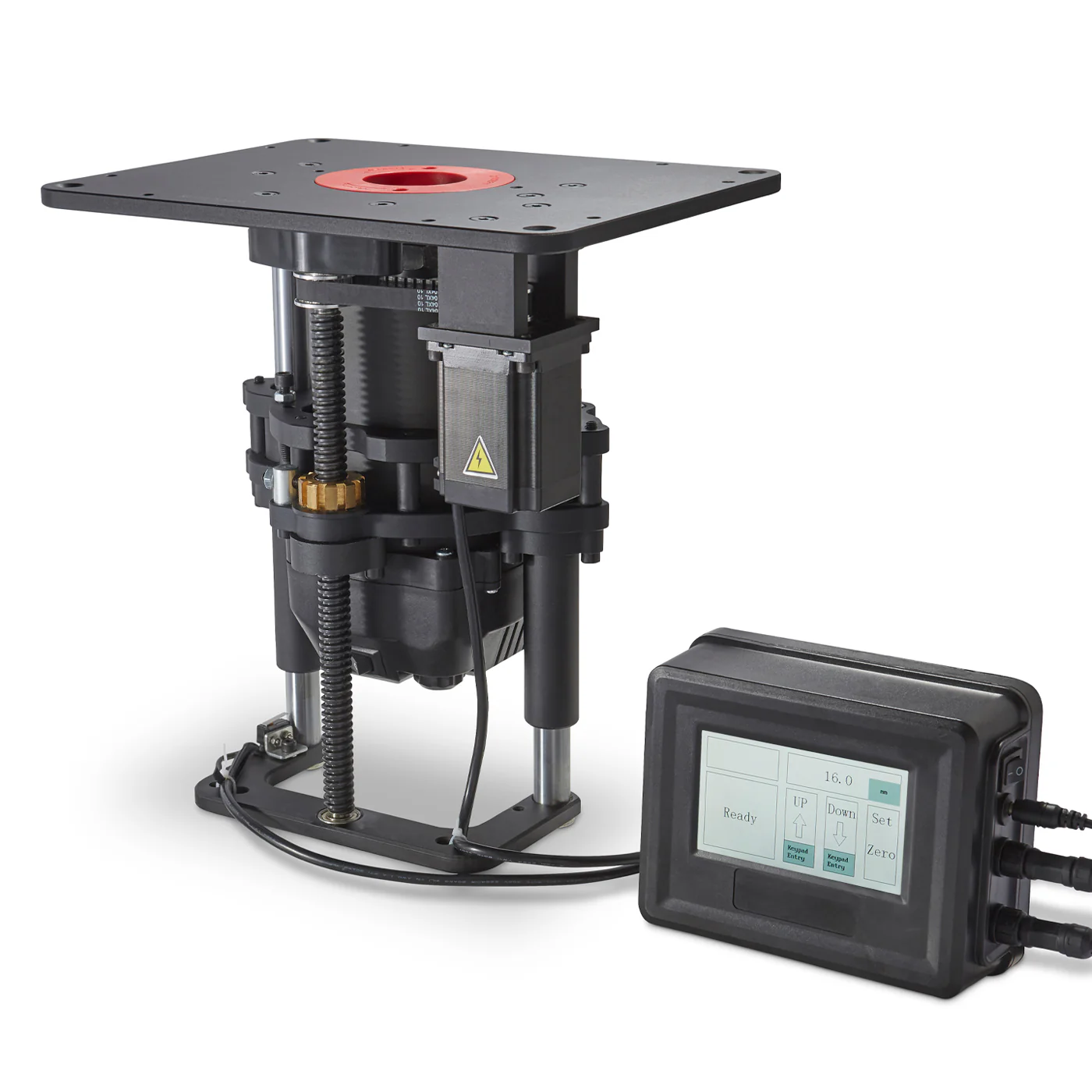

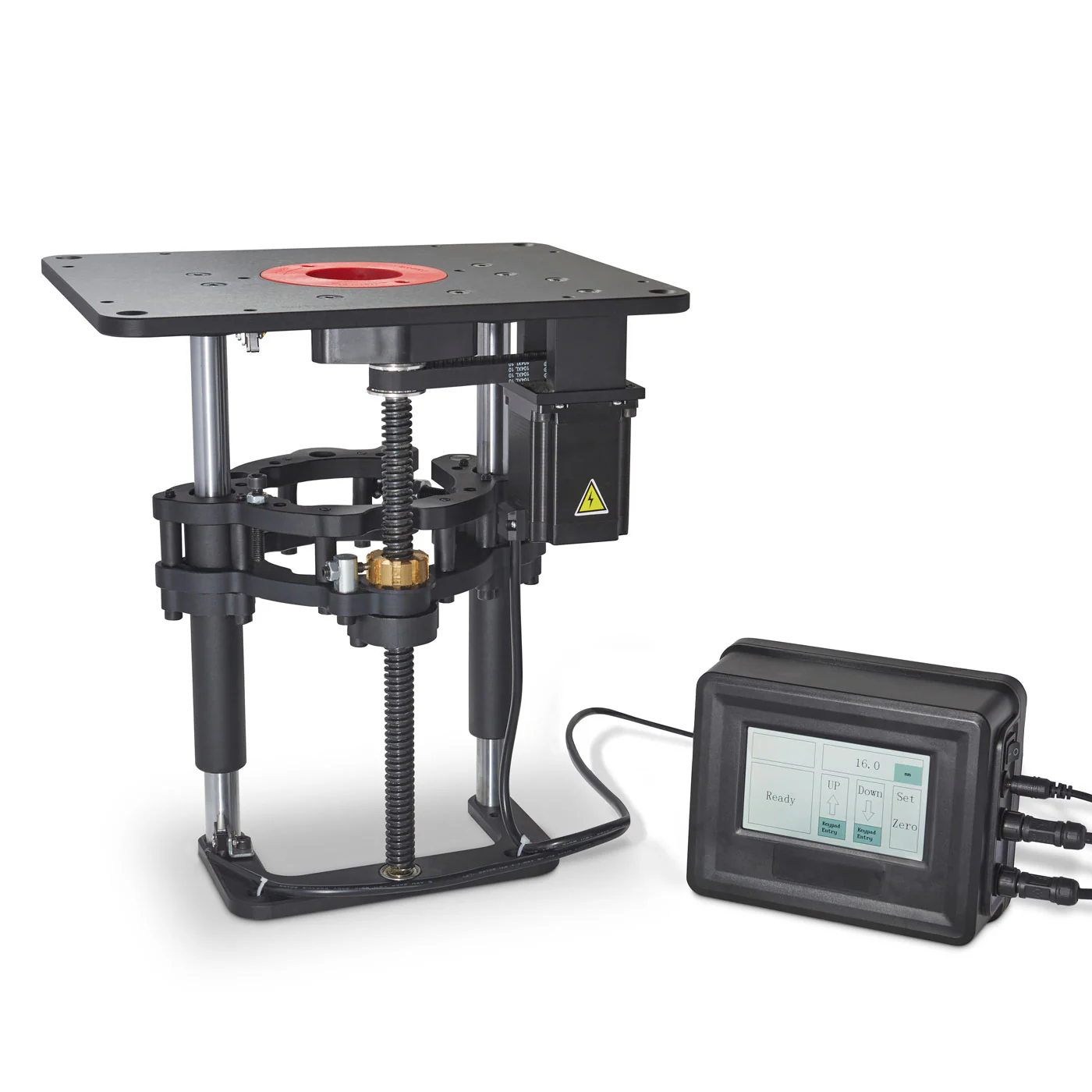

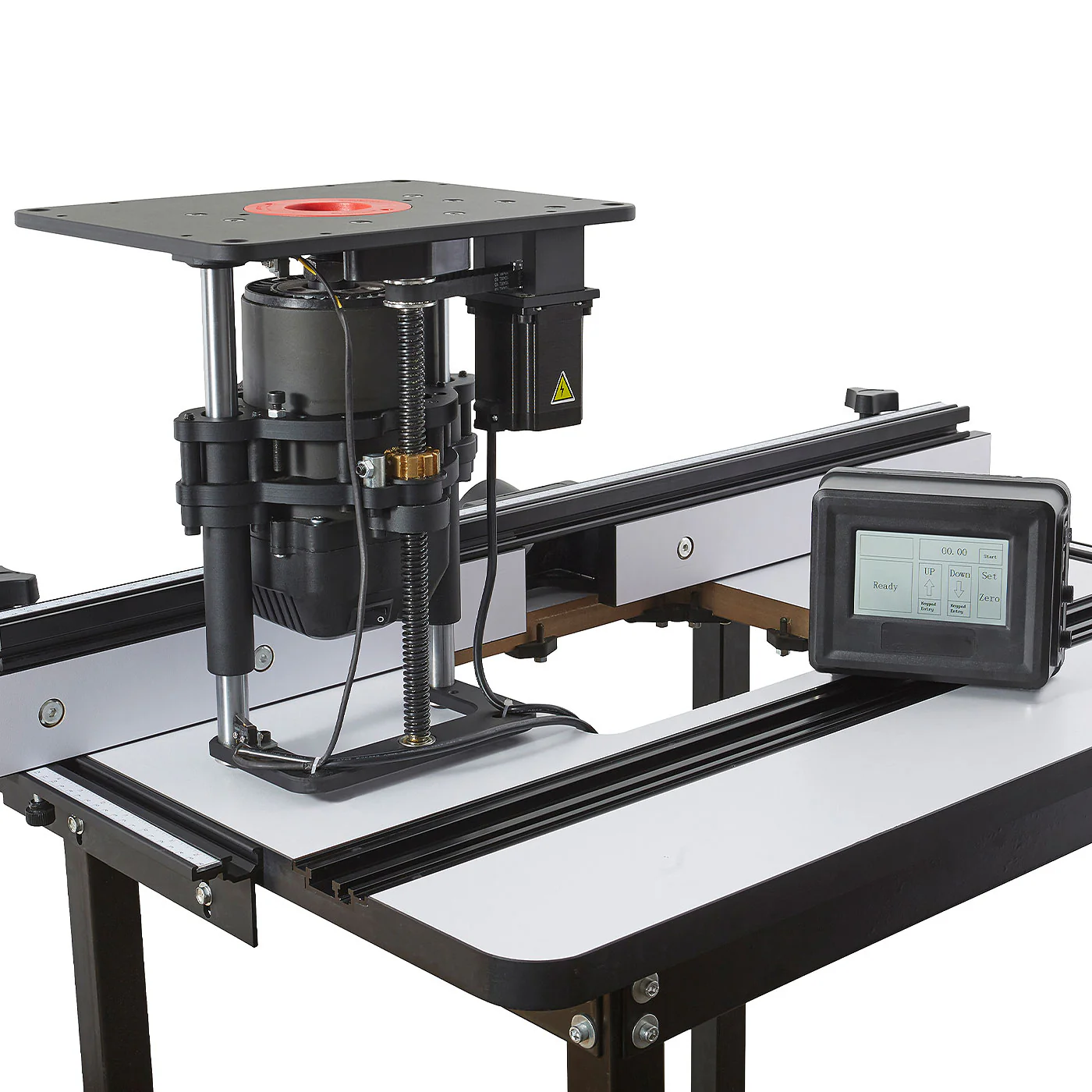

Electronic Router Lift - R20

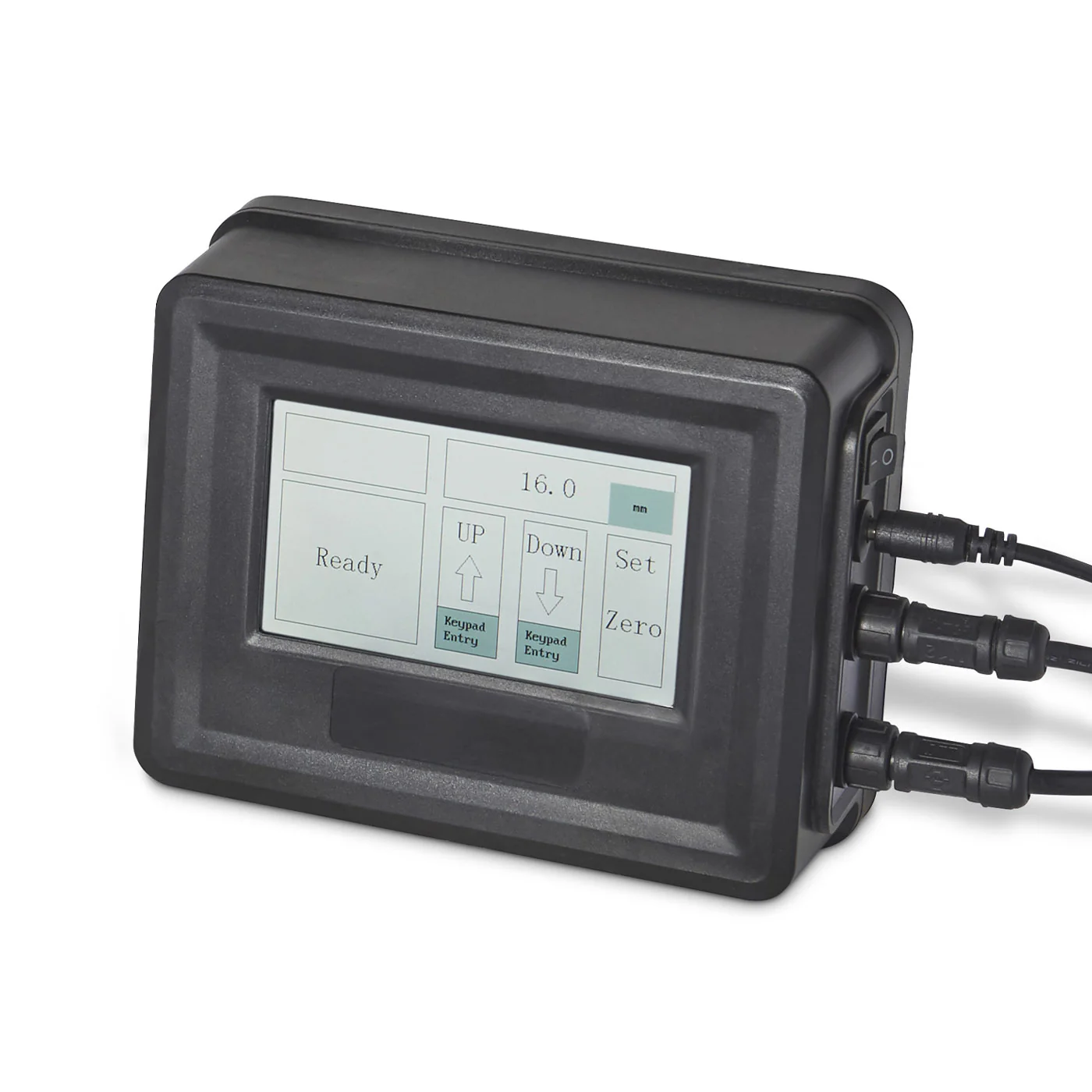

This new electronic router lift significantly reduces set up time and ensures pin point accuracy when table routing. The rise and fall of the router lift is operated by the digital control box which features an LED display. You simply press the start button on the control box and then select either metric or imperial graduations. Metric settings are displayed in 0.1mm increments and imperial settings in 0.001" increments.

There are two operating modes for the lift, the first method is to raise or lower the lift by pressing and holding the up or down button on the key pad until you reach your desired height. The second method is to raise or lower the lift by a specific increment by entering into the keypad the amount of height adjustment required. You can re-set to zero at any height by pressing the set zero height button. This is an excellent feature to ensure pin point routing accuracy down to 0.1mm increments.

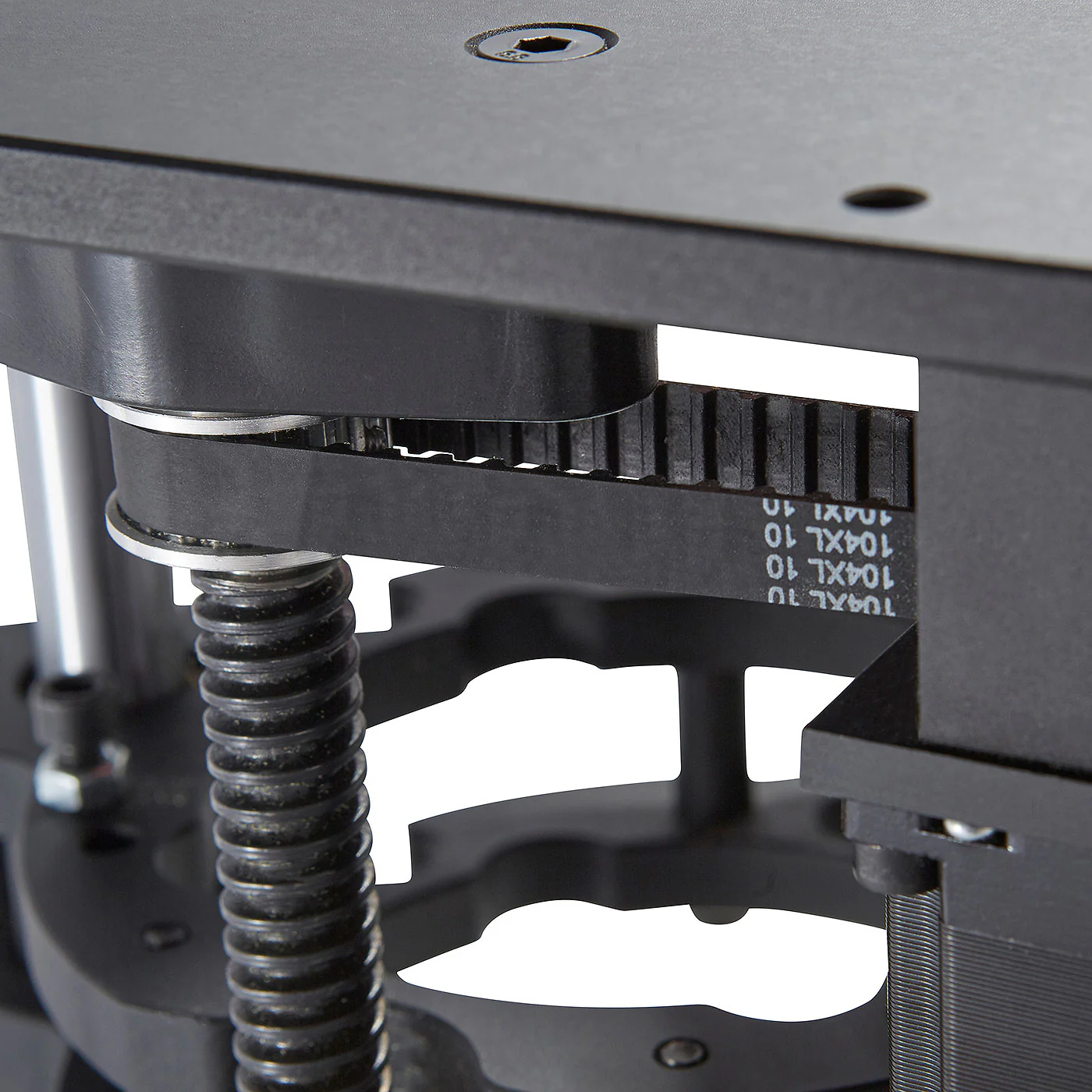

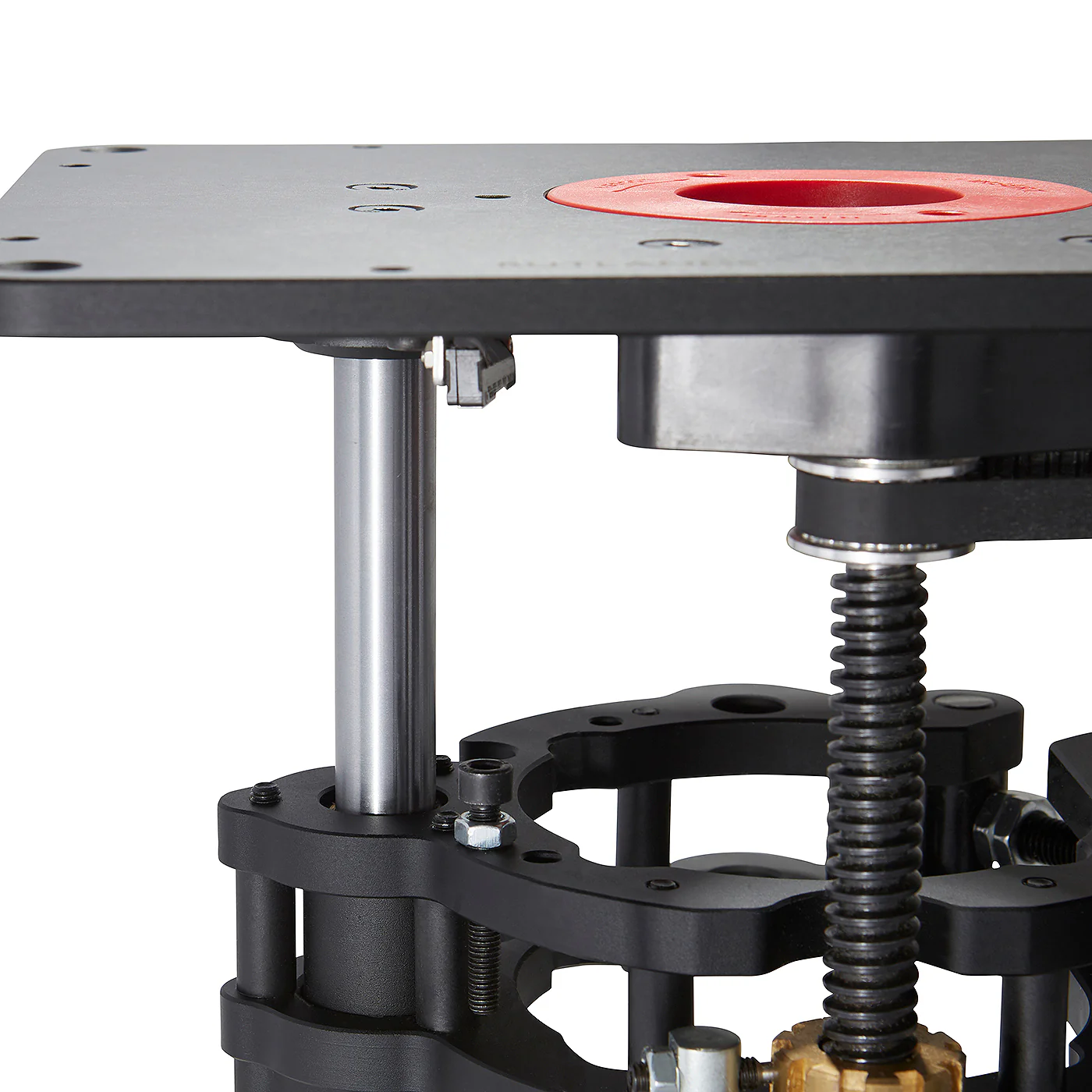

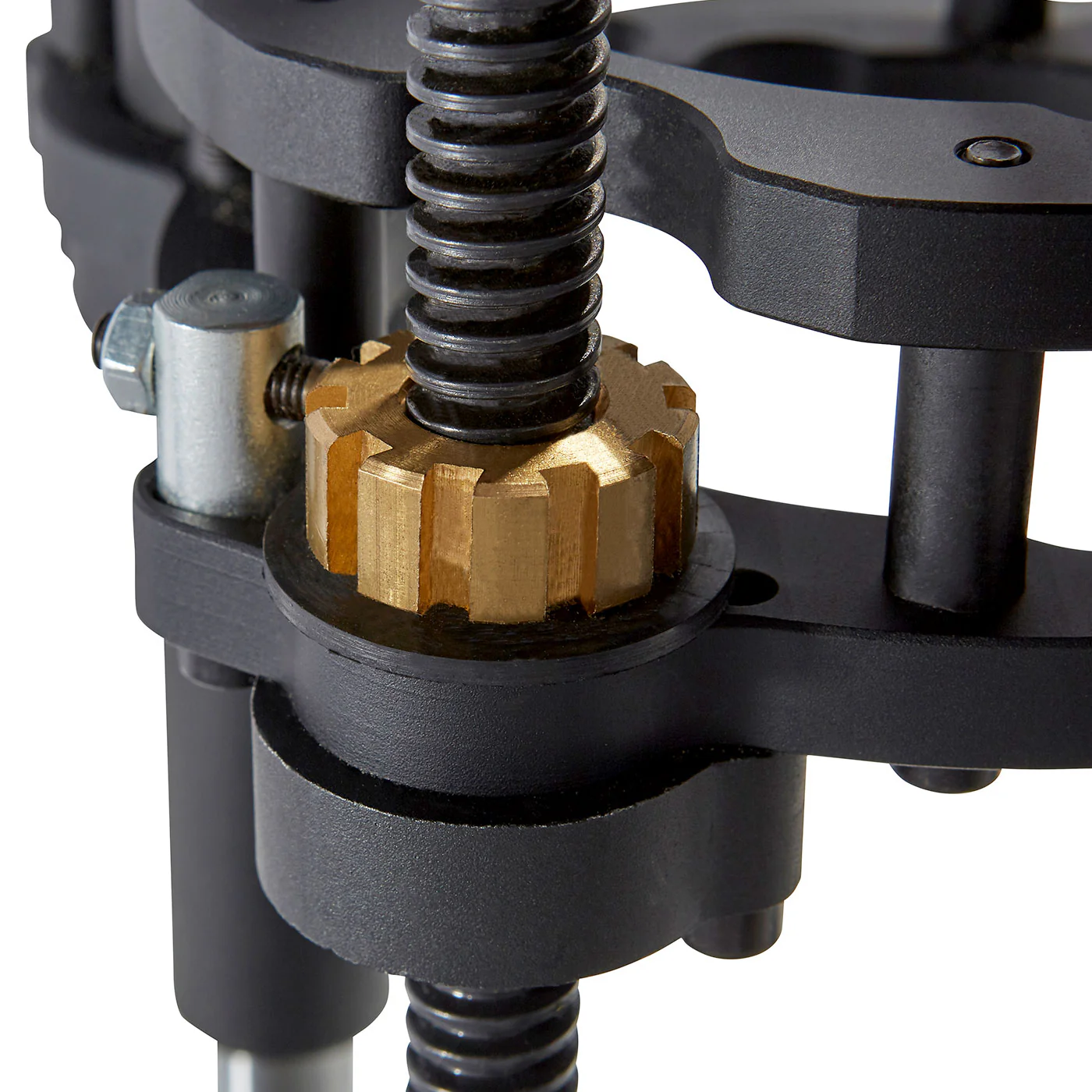

The electronic router lift has an inbuilt thread tensioning design to ensure that the router will automatically lock in position after setting the cutting height, eliminating the risk of unwanted travel during routing. The carriage and threaded arms of the lift are CNC machined and feature sealed-for-life bearings to allow for smooth, stable control of the router motor. An adjustable motor clamping bracket accepts the Rutlands® variable speed router motor and any other router motor with a body diameter between 104mm and 110mm.

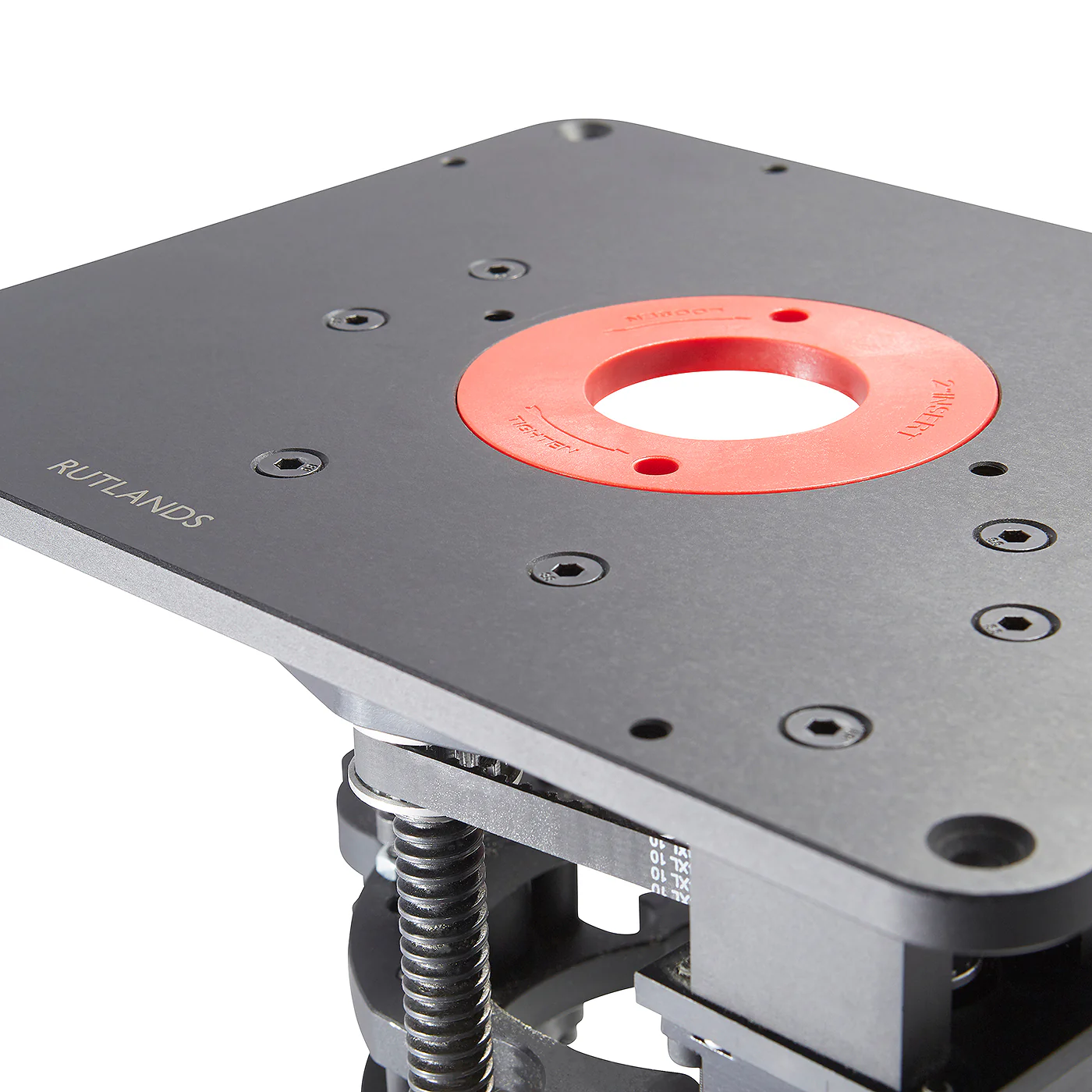

The top plate is CNC machined from 10mm thick aluminium plate and has a 100mm opening for accepting insert rings. The plate can be levelled to a table top via the 8 micro adjustment screws. Supplied with electronic router lift, digital control box, 230V cable and plug, 50mm insert ring, insert ring spanner and full operating instructions. This electronic router lift is a premium product that is extremely simple to use, will save valuable set up time and will ensure pinpoint accuracy. It is without doubt the finest electronic router lift available. ©
